Below are the basic technical specifications of Phase One’s XT Field Camera System.
CAMERA CONTROLS & INTERFACE
| XT functions |
| Shutter release |
Dual-action with customizable half press |
| Horizontal dial |
12mm shift to the left
12mm shift to the right |
| Vertical dial |
12mm shift up
12mm shift down |
| Lens Interface |
| Electrical |
14-pin X-Shutter interface |
| Physical mount |
Cambo WDS compatible |
| Mount lock |
Two action safety release |
| Rotatable tripod foot |
| Quick lock rotation |
Easily switch from landscape to portrait without detaching from tripod |
| Detachable foot |
Easy detach foot for handheld shooting convenience |
| Tripod shoe |
Arca Swiss-type rail |
LENSES & X-SHUTTER

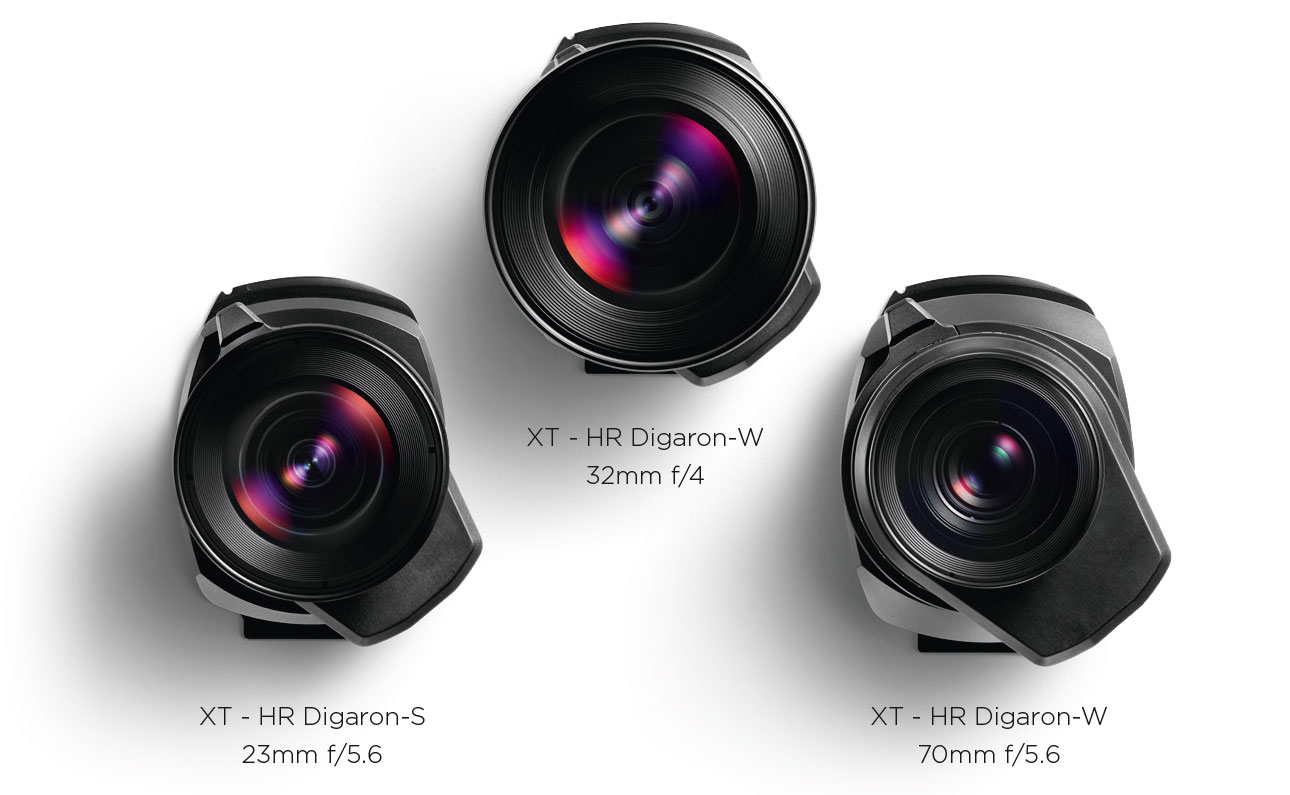

| XT – Rodenstock lenses |
| |
XT HR 70mm |
XT HR 32mm |
XT HR 23mm |
| Aperture range |
5.6 – 22 |
4 – 22 |
5.6 – 32 |
| Filter diameter |
58mm |
86mm |
72mm |
| Image circle |
100mm |
90mm |
70mm |
| Weight |
700 Grams |
1,100 Grams |
850 Grams |
| X – Shutter |
| Shutter type |
Electro magnetical |
| Shutter speed |
1/1000 – 60min |
| Durability |
Tested to 500.000+ captures |
| Shutter blades |
Carbon fiber |
| Helical focus drive |
Ultra fine manual focus |
| Focusing clamp |
Optional reposition or detach with 2 screws |
| Aperture module |
5 blades (curved blades) |
| Max Flash Sync Speed |
1/1000 |
IMAGING SOFTWARE
| Software |
| RAW converter |
Capture One Pro 12.1.1 or newer |
| XT metadata |
Recognizes lens name, time, aperture and shift |
| XT Camera control |
Capture, live view and XT Camera setup |
| XT Lens corrections |
Automatic lens correction for XT – Rodenstock lenses |
| Tethered support |
Yes |
| Workflow options |
Sessions and catalogues |
| Imaging tools |
25+ |
| Local adjustments |
Adjustment & clone layers |
| Batch output |
Yes, using recipes and multiple destinations |
| Output formats |
8 & 16 bit TIFF-RGB, TIFF-CMYK, JPEG incl. XR/2000/QuickProof tm, DNG, PNG, PSD |
